CHEVROLET/GMC 2500/3500HD 4WD LONG TRAVEL KIT 2001-2010

Kibbetech 01-10 Silverado/Sierra 2500/3500HD 4WD Long Travel Kit

Front 4x4 LT KIT INCLUDES

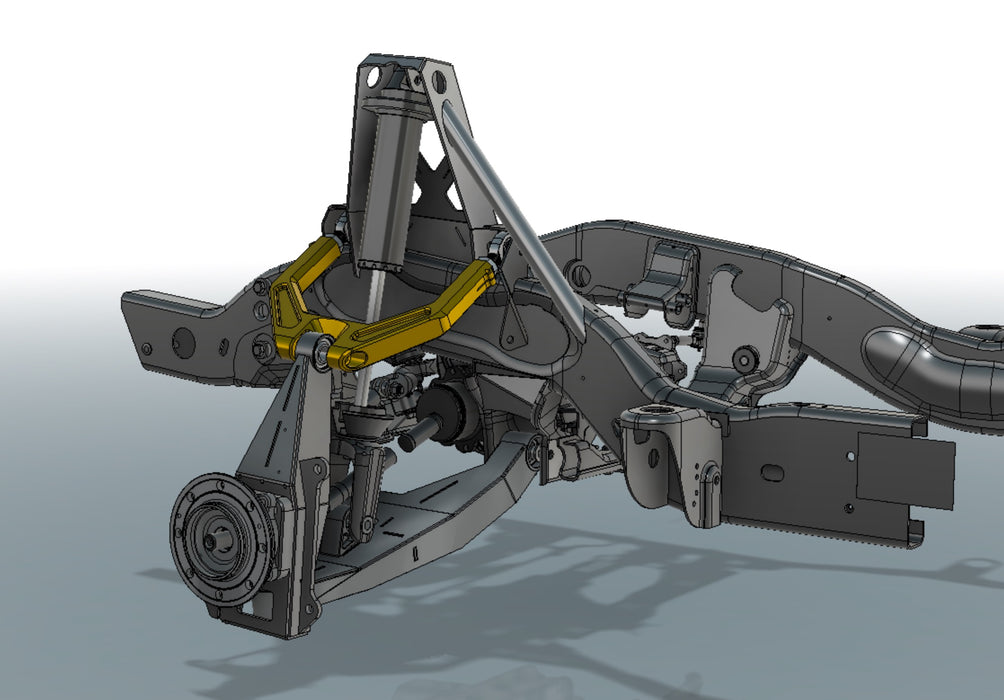

• ALL NEW DESIGN (see first 2 cad model pictures)
• CNC machined Billet aluminum upper control arms
• CNC machined Billet aluminum tie rods
• Fabricated 4130 TIG welded lower control arms
• Fabricated/CNC machined 4130 TIG welded spindles
• CNC machined 4130 lower shock clevis mount
• Custom 300m axles
• Weld on upper arm/shock mount for 8'' stroke 3.0'' coilover
• All FK rod ends, uniballs, steering clevises and stainless misalignment spacers
• Hardware option comes with all RPI 12pt aircraft hardware +$1750 VALUE
• Hardware option Also comes with new KIBBETECH limit straps
• "No hardware" option will exclude RPI 12pt bolts and limit straps

SPECS

• 12'' travel with 8'' stroke shock
• Up to 16'' travel with 10'' stroke shock-This requires moving of EVERYTHING in wheel well area for shock mount room and tire clearance
• Up to 40'' with a lot of work
• Clears 37'' tire with minimal work
• Requires fiberglass fenders

SHOCK SPECS-

When choosing with shocks you will be ordering a set of KING 3.0''x8'' coilovers with compression adjusters GOLD anodize, Black cerakote body, Clevis shock end with axle pass through, remote Gold resi.
Extra options are available at extra cost.

• NO REFUNDS!
• NO RETURNS!
• THE VENDOR PARTS FOR THIS KIT ARE ALL BUILT TO ORDER!
• SHOCKS ARE 6+ MONTHS OUT SO WE RECOMMEND ORDERING NOW!
