4130 MACHINED TRAILING ARM PIVOTS

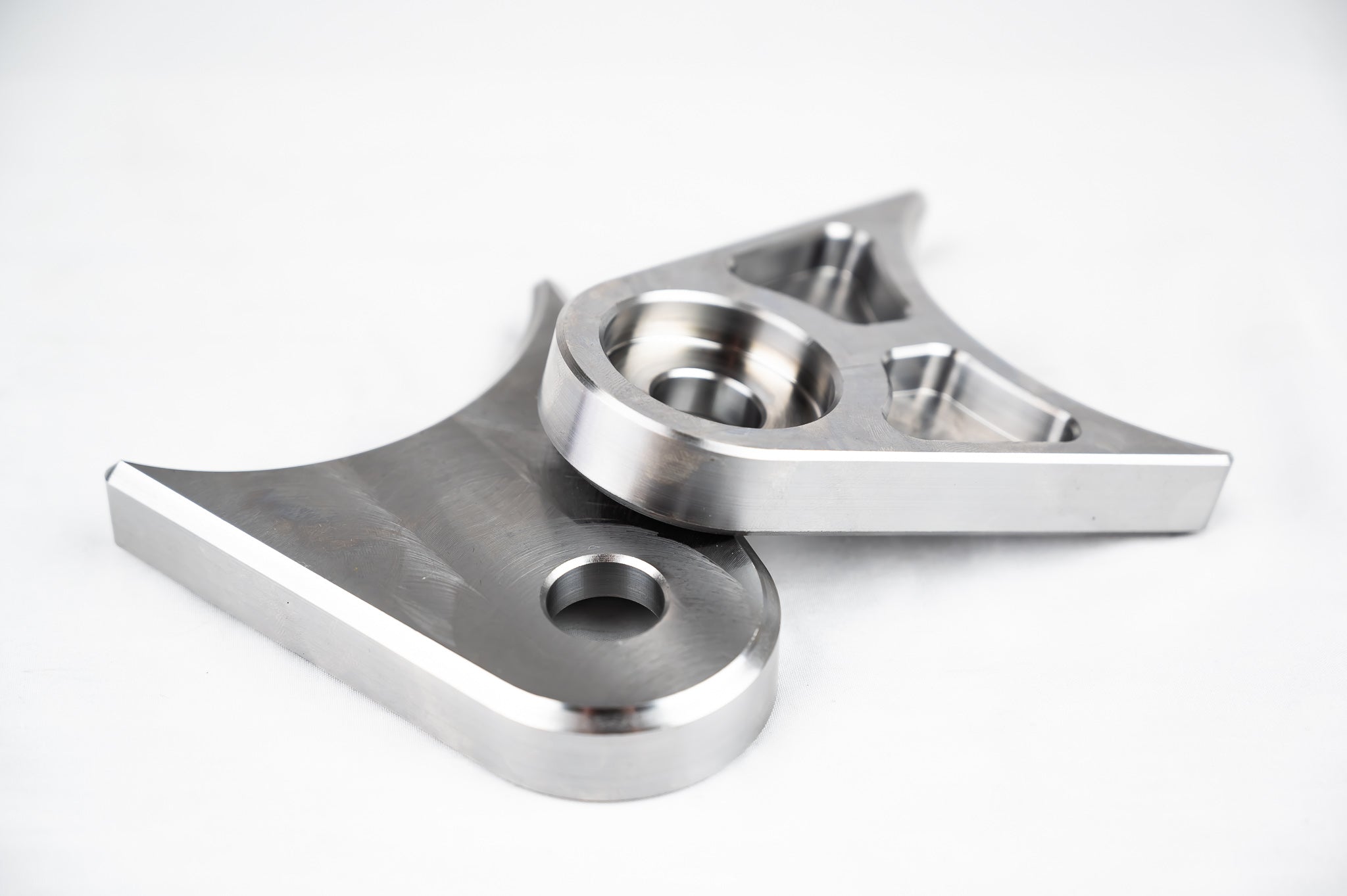

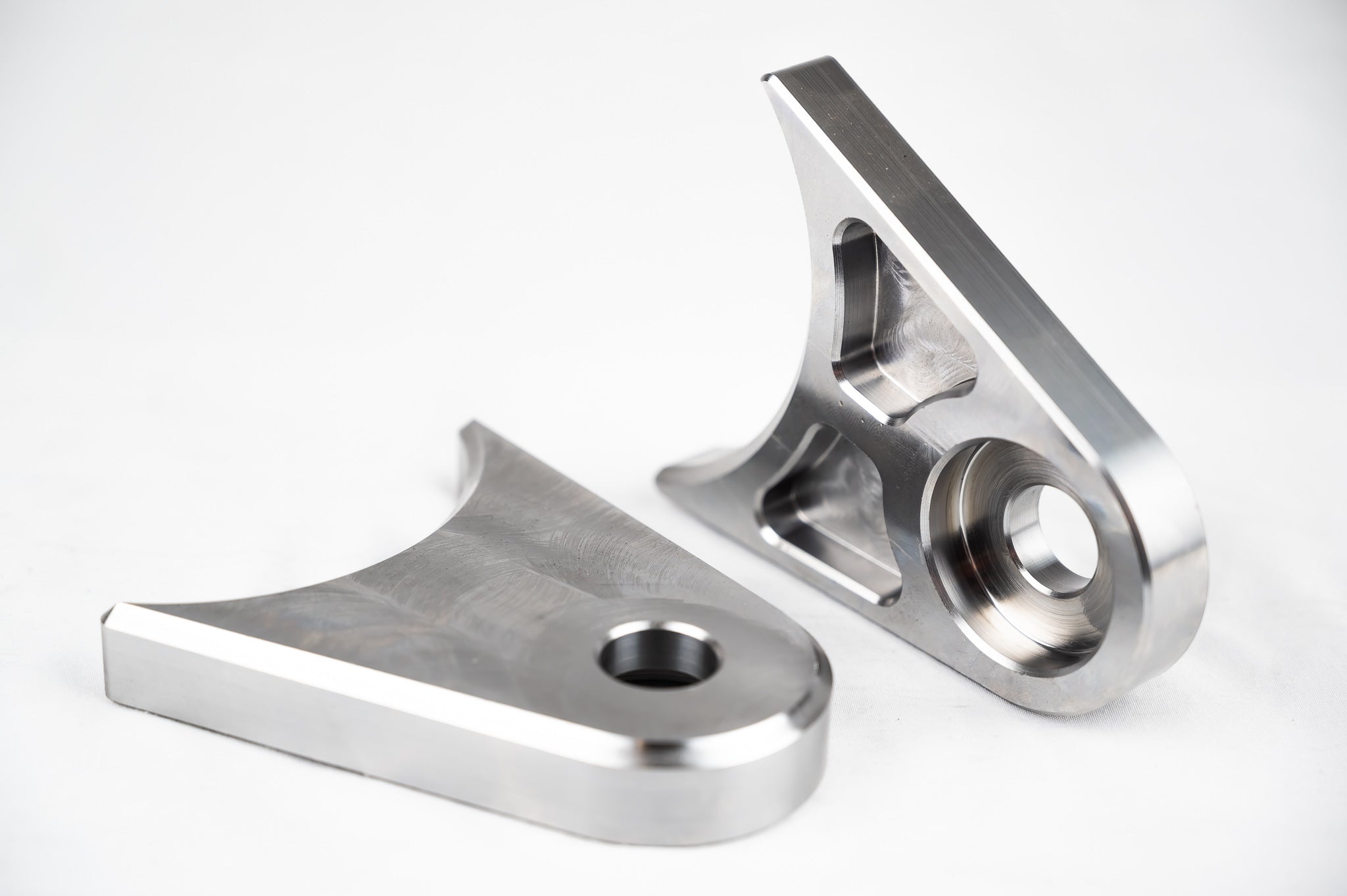

Kibbetech 4130 Machined Trailing Arm Pivots

• CNC Machined in house from domestic .750'' thick 4130 chromoly steel
• .375'' thickness at the bolt
• 3/4” bolt hole
• 2.250'' from axle tube to bolt center
• Features a large chamfer for root pass weld
• For 4” axle tube
• Sold as set of 4
• Comes with 2 box in plates designed for 3.5'' spread misalignments
• ***NEW DESIGN NOW FEATURES PRESS IN STAINLESS INSERTS***
• Stainless inserts allow for a quick swap of the insert in case the pivot hole becomes worn out
